Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Série TTS
Price: 33,850.00 USD
Availability: InStock

À la maison > produits > Stone & Sand Washing Line >

Metal Rotary Drum Screen

Rotary Drum Screen

Lieu d'origine:

Chine

Nom de marque:

hengyang

Certification:

ISO9001

Numéro de modèle:

Série TTS

Nous contacter

Demandez un devis

Détails du produit

Couleur:

Personnaliser

Application:

Le lavage et la séparation

Matériel:

acier

Capacité:

50-400t/h

OEM:

accepter

Conditions de paiement et d'expédition

Quantité de commande min

Prix

12000-55700USD/set

Détails d'emballage

Négocié

Délai de livraison

15-20 jours

Conditions de paiement

T/T

Capacité d'approvisionnement

300 ensembles / mois

PRODUITS CONNEXES

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Obtenez le meilleur prix

Customize PU Spiral Sand Washing Machinery

Obtenez le meilleur prix

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Obtenez le meilleur prix

Insutrial Use Rotary Screen Capacity 1-250t/h

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

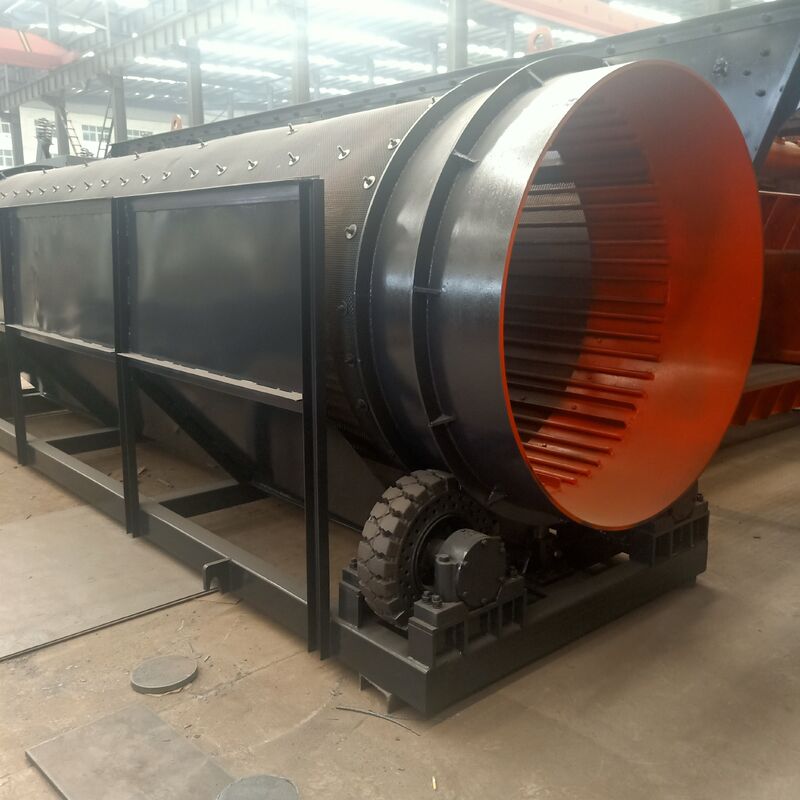

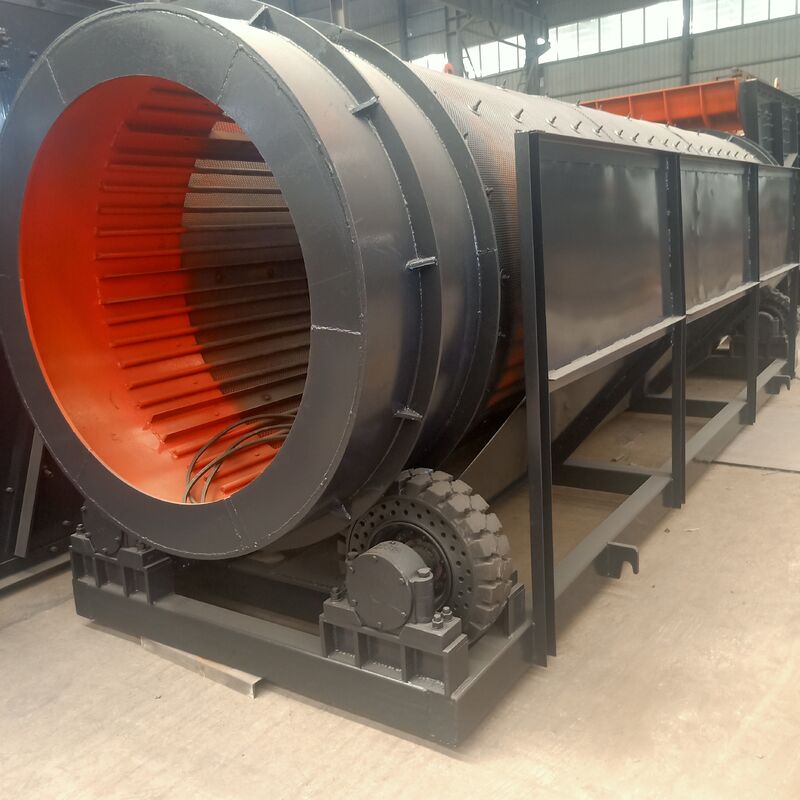

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11

Les étiquettes：

Metal Rotary Drum Screen
